2t ice flake maker machine used in fishery/food fresh preservation and processing

2t ice flake maker machine used in fishery/food fresh preservation and processing

FOB Price:

US 2000-3000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1000 Set/Sets per Month

Port:

Shanghai/Tianjin/Qingdao/Shenzhen

Place of Origin:

Hebei, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T

Brand:

JW ice flake maker

Products Model:

JWF-2000

Products Details
Company Profile

Quick Details

Brand Name: JW ice flake maker

Model Number: JWF-2000

Place of Origin: Hebei, China (Mainland)

Packaging & Delivery

Packaging Details: Ice flake maker packing 1. Standard wooden case. 2. Completely ice machine contain: flake ice maker, cooling tower, water pump, water pipes and water pipe fittings. 3. Machine come into use, customer only need prepare power for the flake ice machine. 4. All required components for install the machine will be provide
Delivery Detail: 10Days after deposit received for ice flake maker

Specifications

Characteristics snow

2t ice flake maker machine used in fishery/food fresh preservation and processing

1.Evaporator of fresh water ice flake maker used alloy flake ice making machine, with scirntific channel, low failure rate

2. The sea flake ice maker eveporator used SUS304 quality stainless steel, not easy to corresion

3. Vertical evaporaror fixed design, avoid the problem of seal damage resulting evaporator leakage.

4. The ice skate blade by rotary rolling operation, small resistance, low energy consunption, no noise, no ice power

5. PLC automatic control, automatic fault alarm and automatic ice making, easy maintenance

Product Description

Features of 2t ice flake maker machine

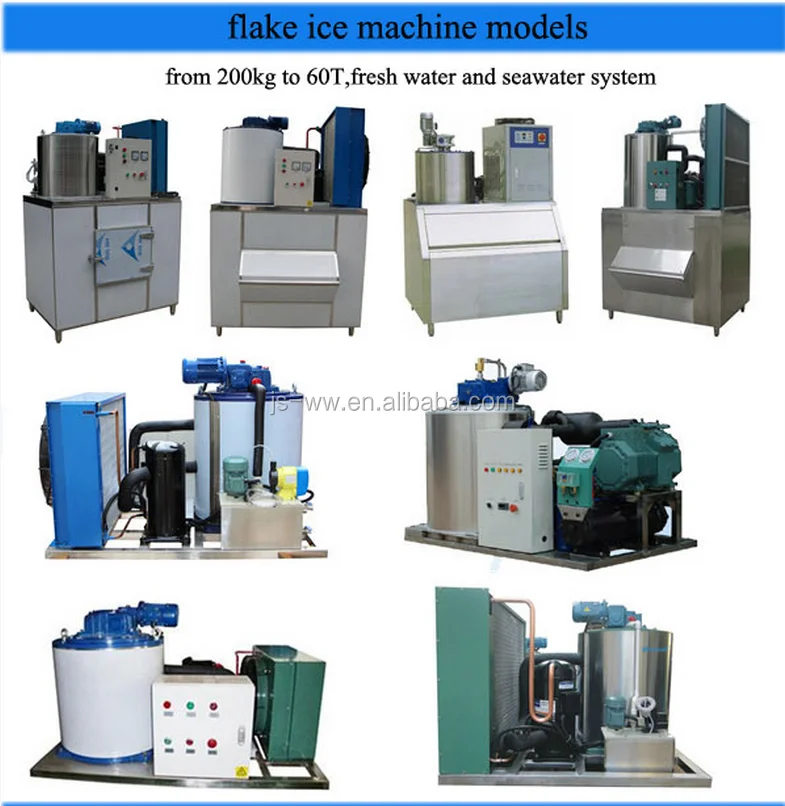

1.Flake ice production range:

200 kg - 60 tons / day

2.Ice flake maker Evaporator:

Made with a sandwich stainless steel (or carbon) vertical cylinder, the refrigerant evaporated in the sandwich, water spraying in the cylinder wall and then rapid freezing, by continuously rotating stainless steel skates squeeze the ice, excess water back to the tank through the baffle, recycling once more.
3.Ice features:

Ice shape: ice irregular scaly.

Thickness 1.5-2.5MM.

No sharp edges and corners,contact area larger, cooling faster.
4.Multi spiral cutter:

Reducing equipment energy consumption, no friction with cylinder wall in avoild of refrigerant leaks.
Steel with chrome plating,or quality 304, / 316 stainless steel, ensure good heat transfer efficiency.
5.PLC control, less failure, maintenance is simple and convenient.

Usage of ice flake maker

Technical parameters

Parameters of ice flake maker

Model	Maximun Capacity(kg)	Ice shape	Storage Capacity(kg)	Dimension (WDH)mm	Power	Refrigerant	Condenser
JW-F200	200		150	730760600	220V1100W	R22
JW-F500	300	Flake ice	280	7608301750	220V1500W	R22/R404a	Air/Water
JW-F1000	1000		400	131010601700	380V3900W	R22/R404a
JW-F2000	2000		1000	155014002100	380V6700W	R22/R404a
JW-F2500	2500		1000	155014002200	380V8500W	R22/R404a
JW-F3000	3000		1200	165014602800	380V9800W	R22/R404a
JW-F4000	4000		2000	175015501250	380V18.32kw	R22/R404a
JW-F5000	5000		3000	175015501600	380V23.122kw	R22/R404a
JW-F6000	6000		3000	175015501600	380V26.15kw	R22/R404a
JW-F8000	8000		4000	253018301680	380V31.5kw	R22/R404a
JW-F10	10000		5000	253018301820	380V45.5kw	R22/R404a
JW-F15	15000		7500	310020901865	380V64kw	R22/R404a
JW-F20	20000		10000	369520902050	380V75.8kw	R22/R404a
JW-F25	25000		12500	369520902265	380V97.8kw	R22/R404a
JW-F30	30000		15000	388021202400	380V115.7kw	R22/R404a

snow details

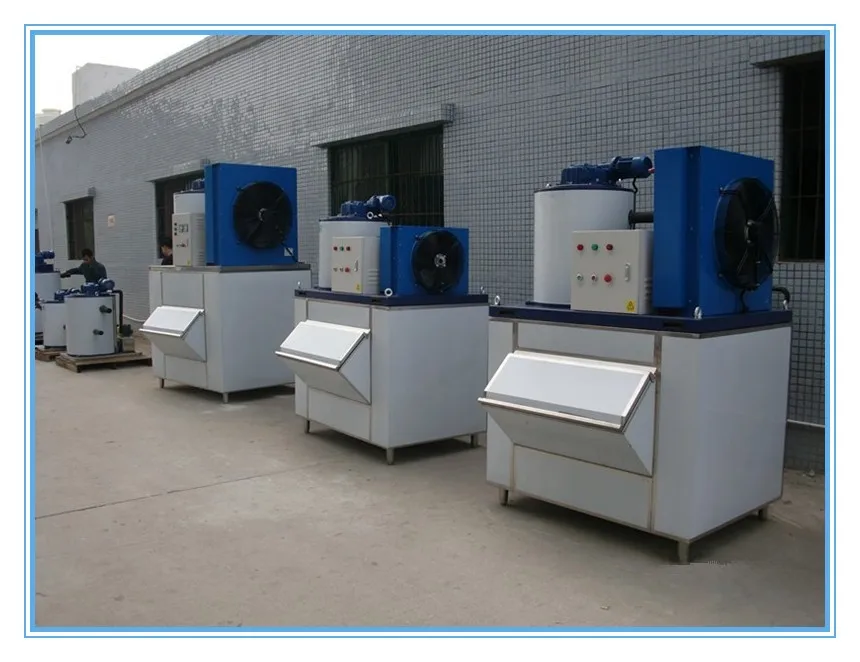

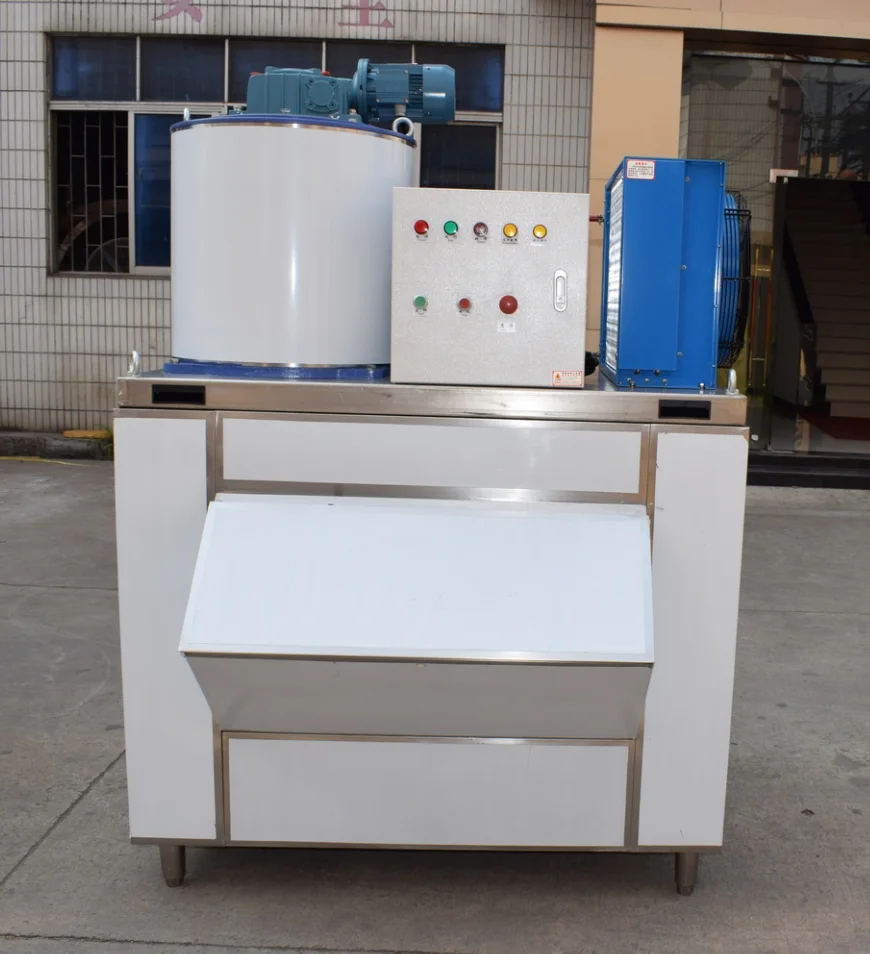

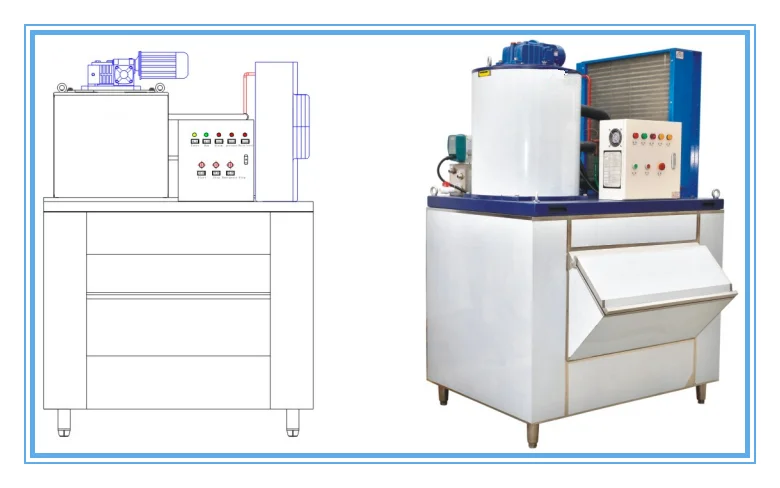

Details of ice flake maker
