Brand Name: jw
Model Number: jw-1500p
Place of Origin: China (Mainland)

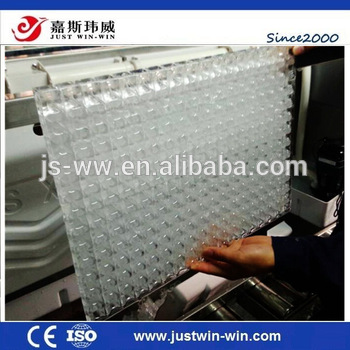

Hot-selling 675kg 1500lbs of ice production per day Ice cube making Machine/ ice cube maker machine/ square ice cube maker machine
Spec of Cube Ice Machine
Features:
1.Condenser: air / water
2.Professional ice making, the first choice of beverage industry ice consumption!
3.Ice cube transparent and crystal, thickness adjustable, cooling fast and slow dissolution!
4.Vertical efficient evaporator!
5.Running tips function, easy maintenance!
6.Leading technology copper-nickel evaporator. Ice-making fast, ice-falling quickly, saving energy and time!
7.Reasonable increase evaporation area, both to ensure full production, and improve the quality of ice!
8.Detection microcomputer control system, no special operation, safe and reliable!
9.Scientific configuration of condensation system and condensing temperature device, able to adapt to different ambient temperatures!
10.PE Ice bin with overall rotational molding process, achieving food grade standards!
11.World famous components, long life, energy-efficient (power and water saving).
12.Hexahedral ice cube, large contact surface, can rapidly cooling drinks!
13.Stainless steel housing (front panel special treatment, non-stick oil) luxury and generous. Easily to clean. Durable in use!
14.Whole machine 2 year warranty, the compressor 5 years. Maintenance for life!
Modular Type Cube Ice Machine
Model |
Max Capacity kg/24h |
Power |
Voltage / Frequency |
Cooling way |
Refrigerant |
N.W/G.W |
Dimension |
JW-350P |
140 |
900W |
220/50 110/60 |
Air |
R404a |
86/94KG |
81x57x158CM |
JW-420P |
189 |
1100W |
220/50 110/60 |
Air |
R404a |
92/100KG |
81x57x158CM |
JW-500P |
225 |
1240W |
220/50 110/60 |
Air |
R404a |
114/141KG |
81x78x168CM |
JW-700P |
310 |
1460W |
220/50 110/60 |
Air |
R404a |
121/148KG |
81x78x168CM |
JW-1000P |
450 |
2300W |
220/50 110/60 |
Air |
R404a |
126/146KG |
81x78x185CM |
JW-1500P |
675 |
2860W |
220/50 110/60 |
Air |
R404a |
233/290KG |
81x122x178CM |
JW-2000P |
900 |
3950W |
220/50 110/60 |
Air |
R404a |
241/297KG |
81x122x195CM |
Ice Machine Main Parts:
Main parts |
Manufacturer |
Compressor |
Aspera/ Bitizer/ Copeland/ Tecumseh/ KK etc |
Control system |
PLC or Brand Imported etc |
Expansion Valve |
Denmark Danfoss etc |
Drying Filter |
Denmark Danfoss etc |
Defrost Solenoid Valve |
Japan Saginomiya etc |
Hydraulic Valve |
Japan Saginomiya etc |
Condenser Fan |
Germany EBM etc |
Pump |
Germany EBM etc |

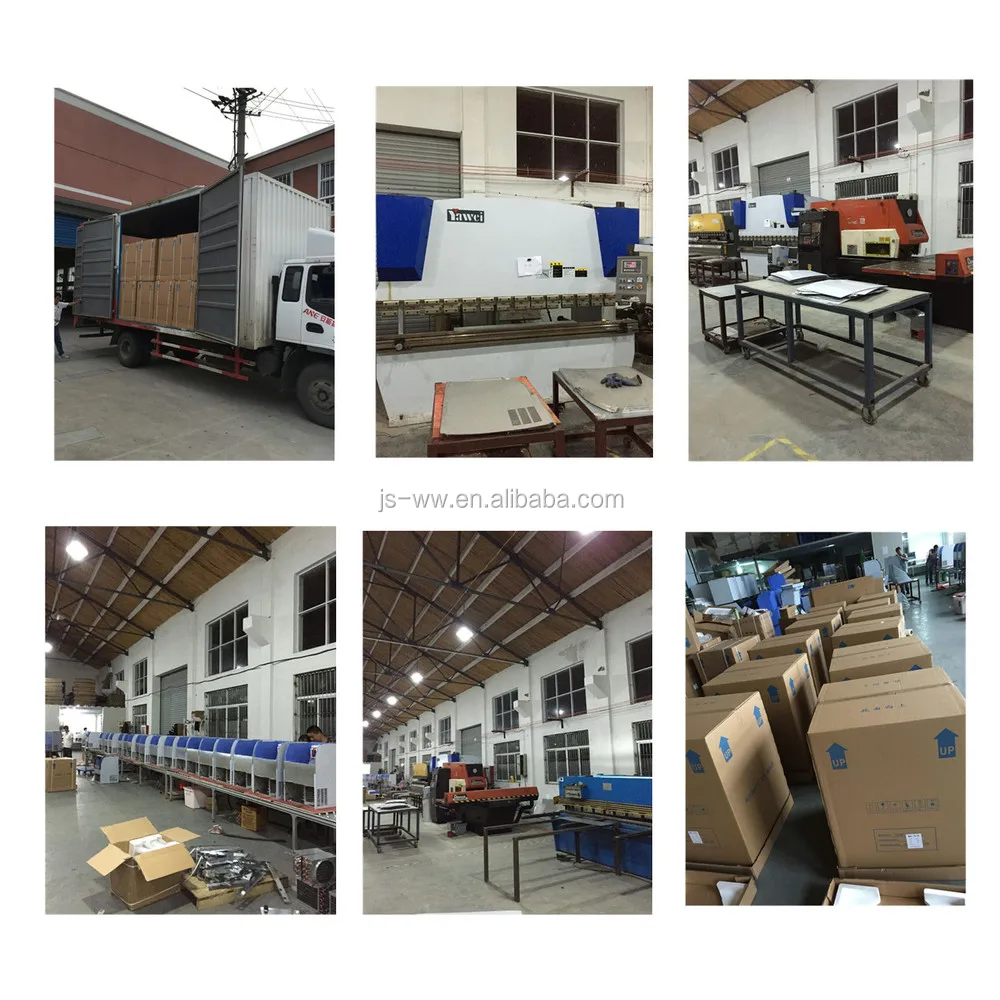

FACTORY & WAREHOUSE

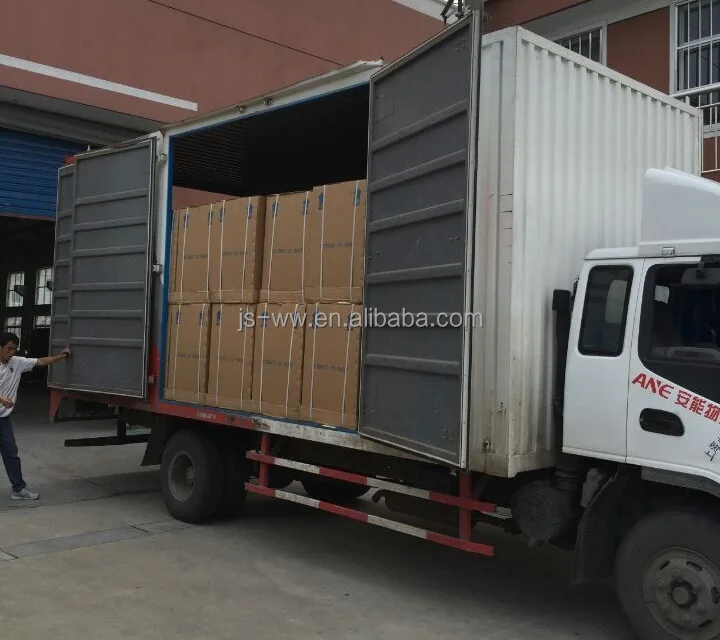

SHIPEMENT AND DILIVERY
ICE MACHINE CERTIFICATION
Pls contact me for the more detailed information!
